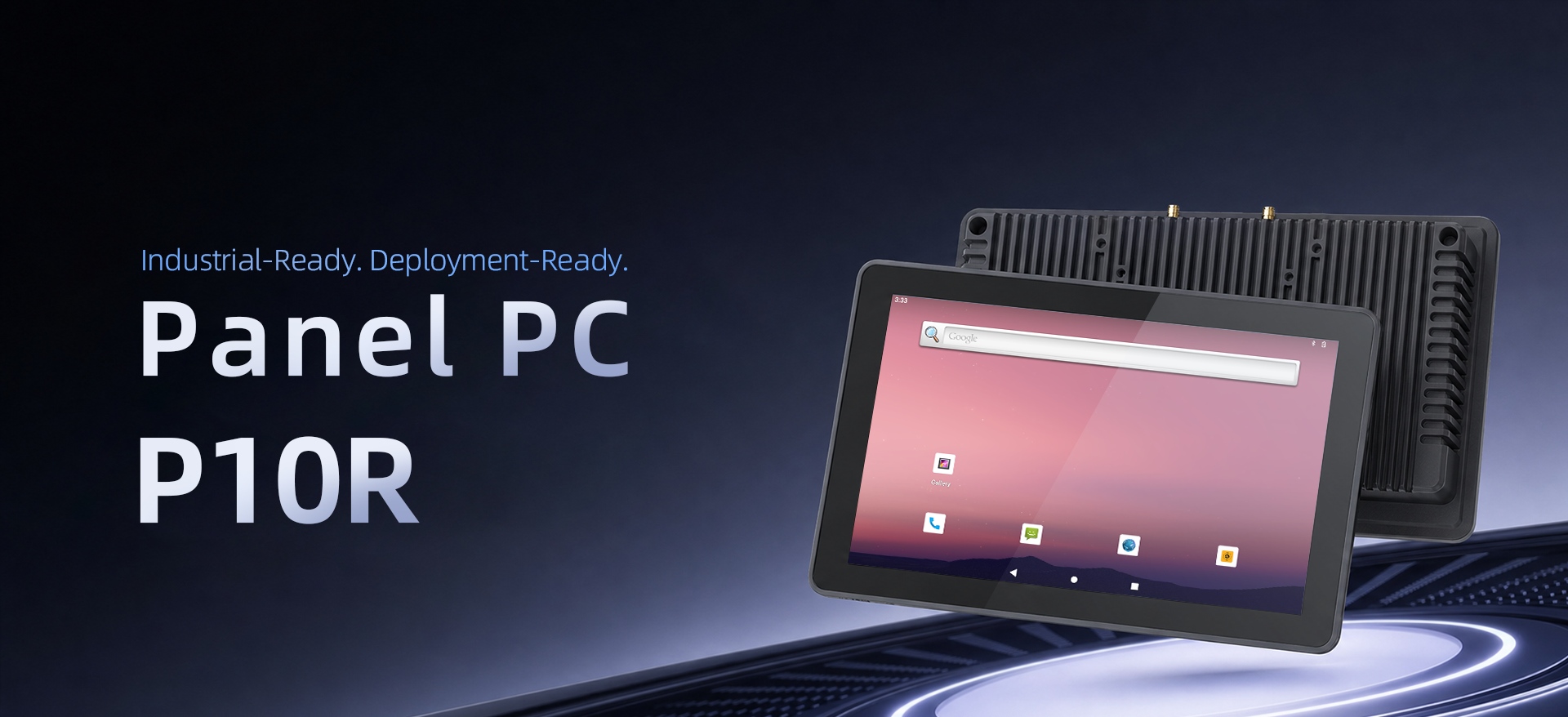

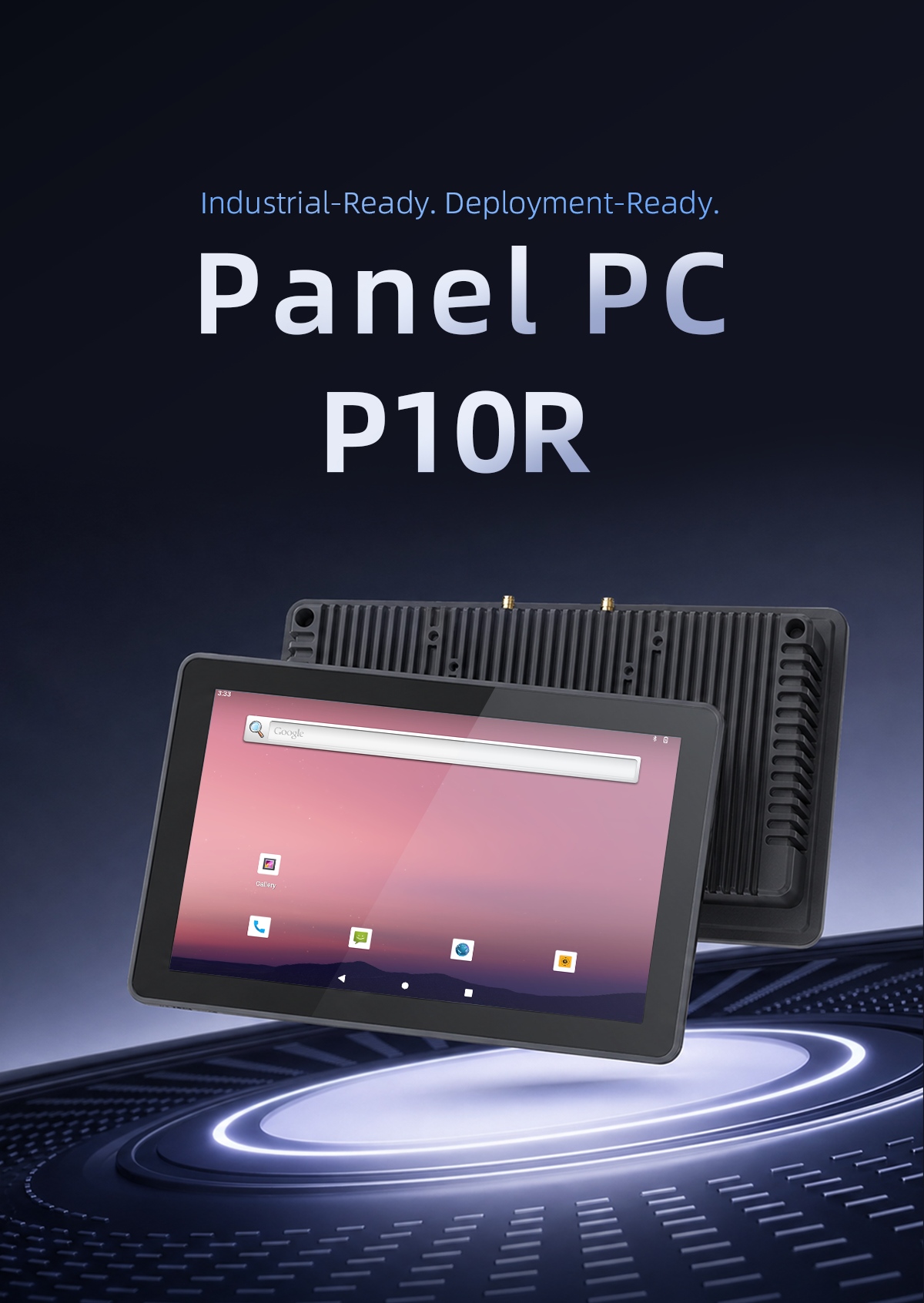

كمبيوتر صناعي أندرويد 10.1 بوصة P10R

Industrial Panel PC
P10R

RK3568 Android Performance for Flexible Fanless Edge Deployment

Efficient ARM Computing for
Industrial Edge Applications

Powered by the Rockchip RK3568 quad-core processor, the P10R delivers energy-efficient ARM computing with speeds up to 2.0GHz. Combined with Mali-G52-2EE graphics and Android 12, it provides a practical platform for industrial HMI, equipment terminals, edge computing and smart commercial applications.

The P10R includes 4GB LPDDR4x onboard memory and 64GB eMMC storage, together with Wi-Fi 5, Bluetooth 5.0 and optional 4G LTE. Its fanless design and industrial I/O support flexible integration into fixed industrial systems.

High Efficiency for
Low-Power Industrial Computing

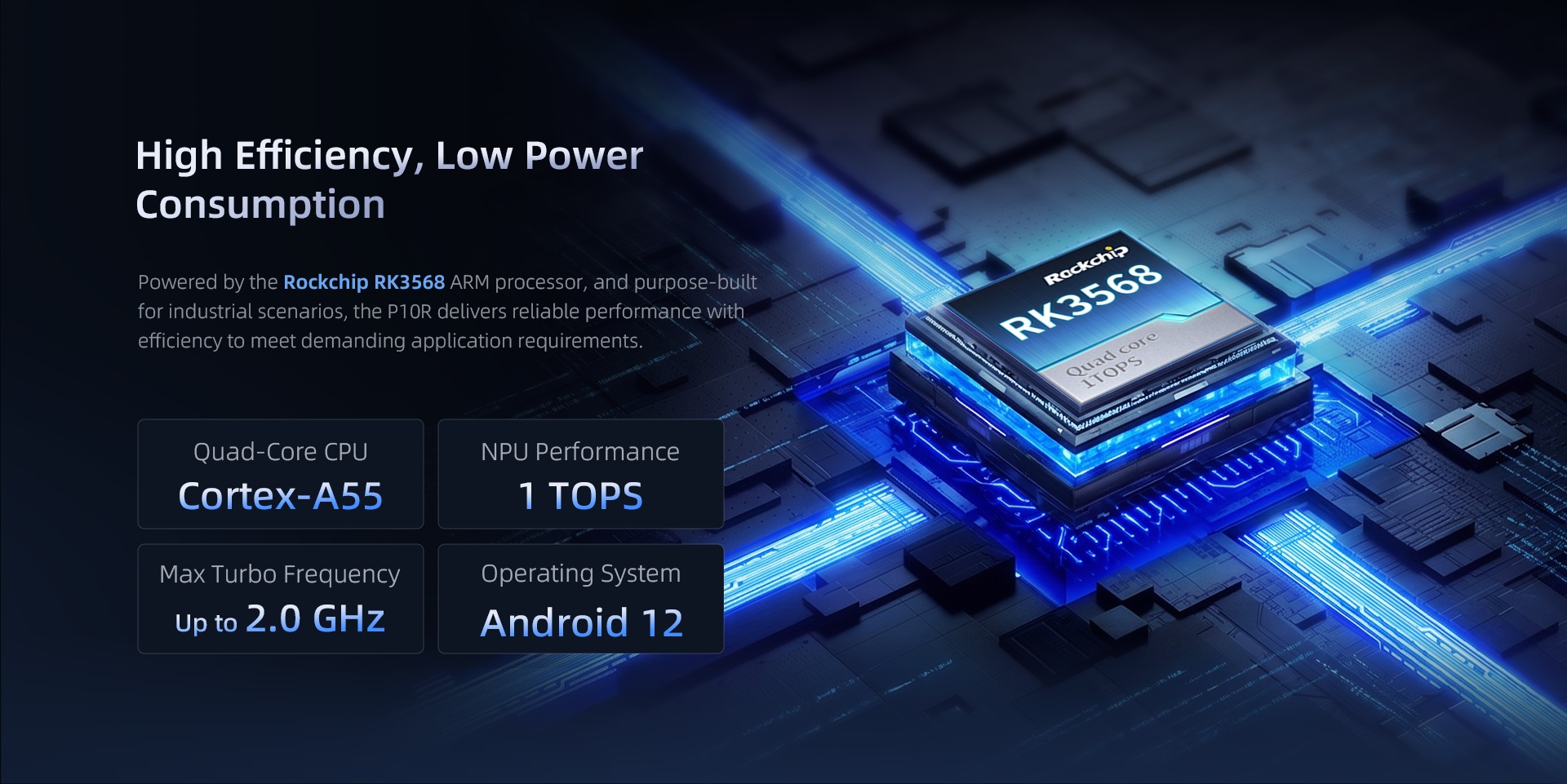

Powered by the Rockchip RK3568 processor, the P10R delivers efficient ARM computing with 4 cores and speeds up to 2.0GHz, providing reliable performance for industrial HMI, equipment terminals, edge computing and smart commercial applications.

Combined with Mali-G52-2EE graphics and Android 12, the P10R provides a responsive platform for visualization, control interfaces and embedded Android applications while maintaining an energy-efficient, fanless industrial design.

Clear Touch Interaction for
Android HMI Control

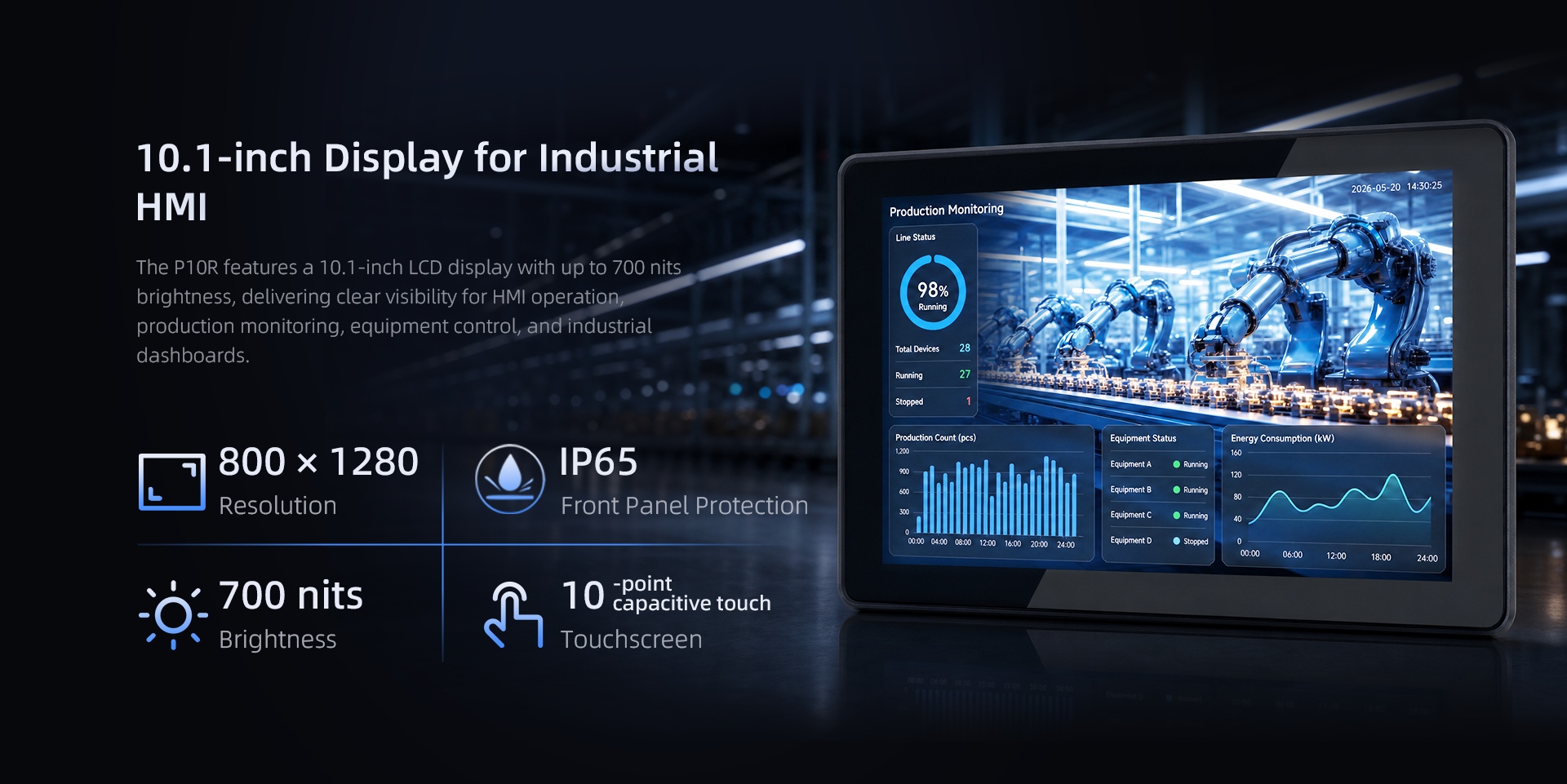

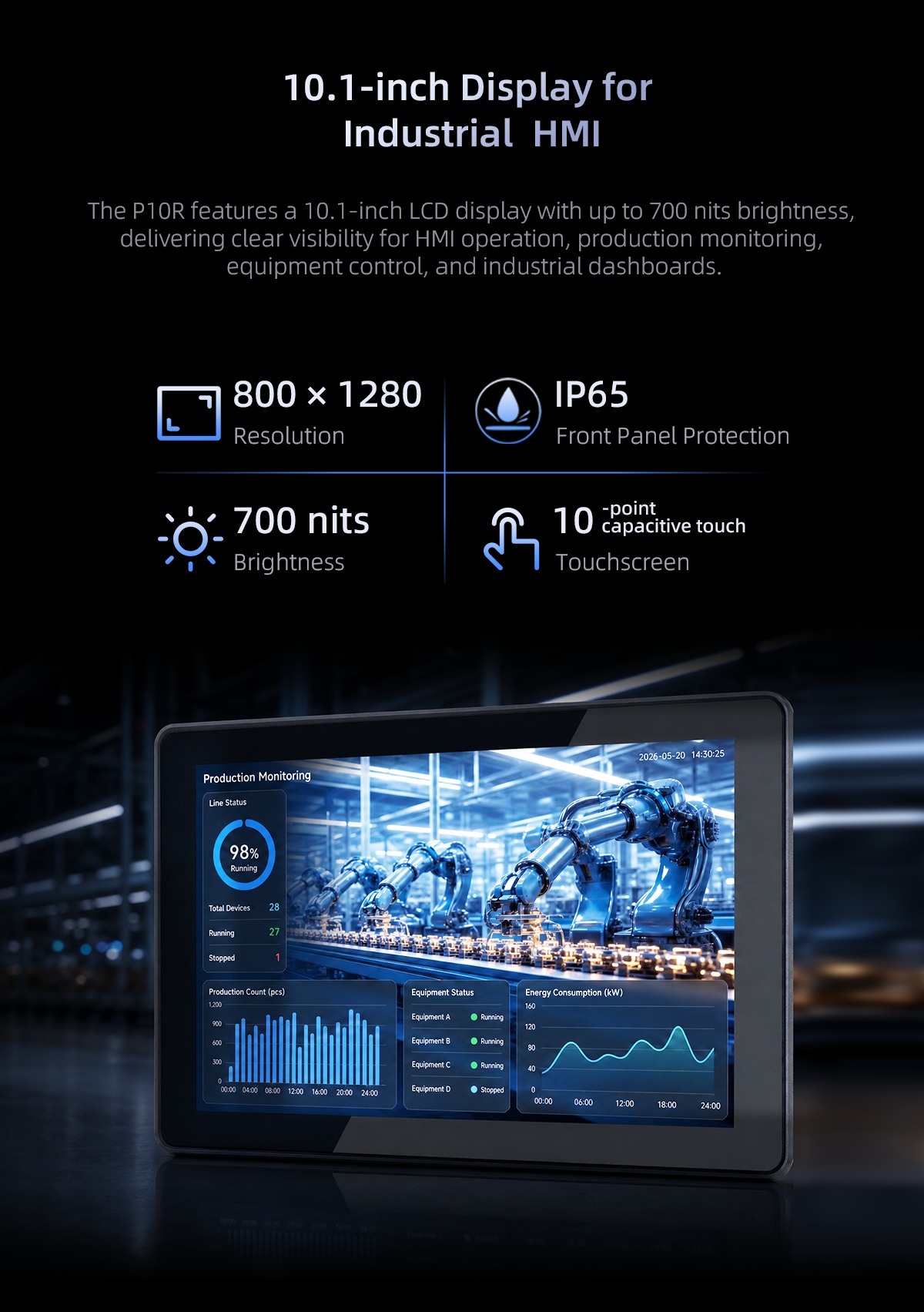

The P10R Android industrial panel PC features a 10.1-inch LCD display with 800 × 1280 resolution and 700 nits brightness, providing clear visualization for HMI interfaces, production monitoring, equipment control, process data and industrial dashboards.

A 10-point capacitive touchscreen supports intuitive multi-touch operation for data entry and interface control, while the IP65-compliant front panel helps protect the display surface against dust and water exposure in industrial environments.

Balanced Memory and Storage for
Android Industrial Applications

The P10R Android industrial panel PC comes with 4GB LPDDR4x onboard memory, providing efficient system performance for Android HMI applications, equipment terminals, industrial dashboards and embedded edge computing workloads.

Built-in 64GB eMMC storage provides reliable capacity for the operating system, applications and industrial data, while a dedicated Micro SD card slot offers additional storage flexibility for deployment requirements.

Rich Interfaces for
Industrial Device Integration

The P10R Android industrial panel PC provides comprehensive interfaces for connecting controllers, scanners, sensors, displays, network equipment and other industrial peripherals in HMI and edge computing applications.

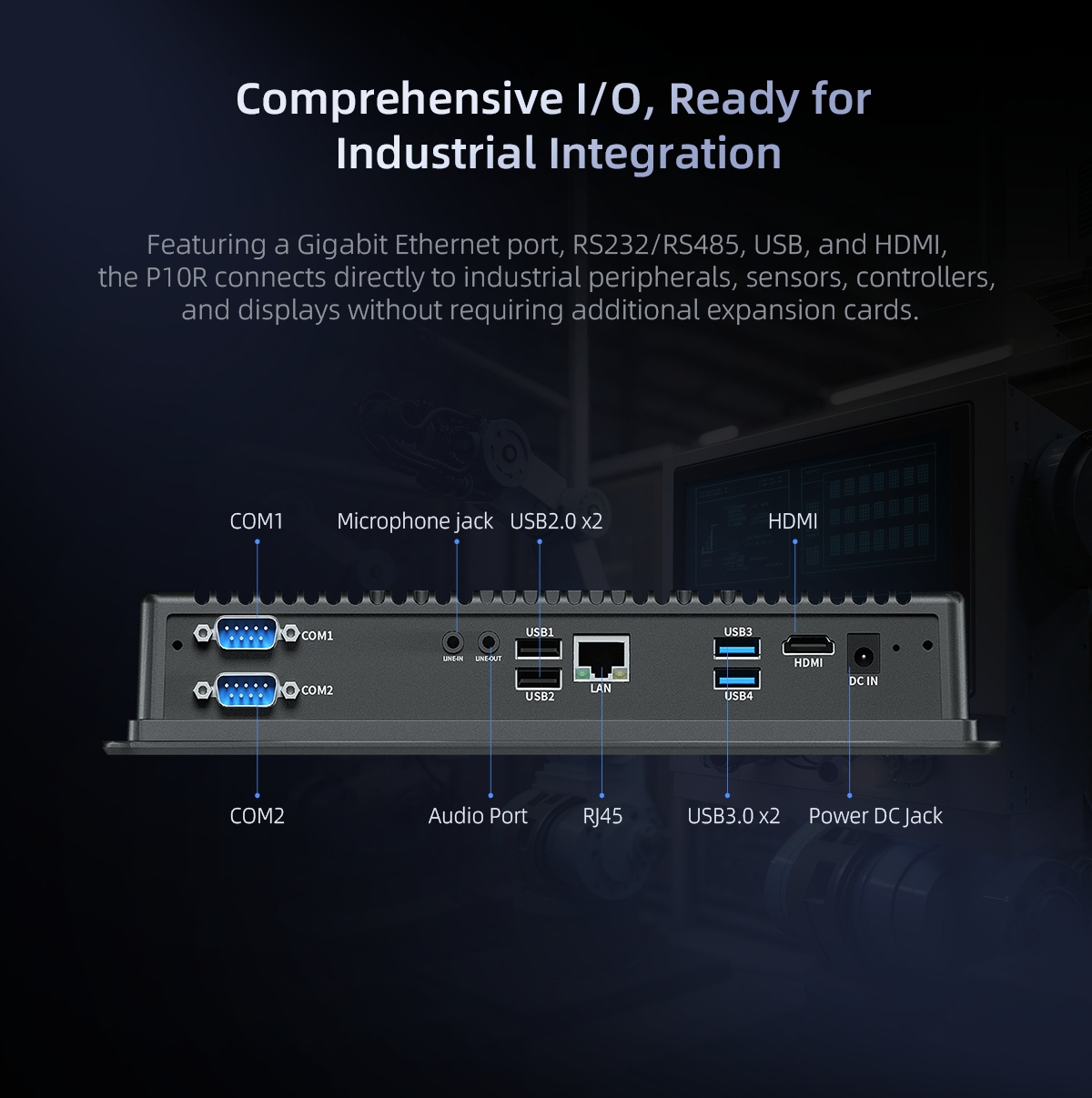

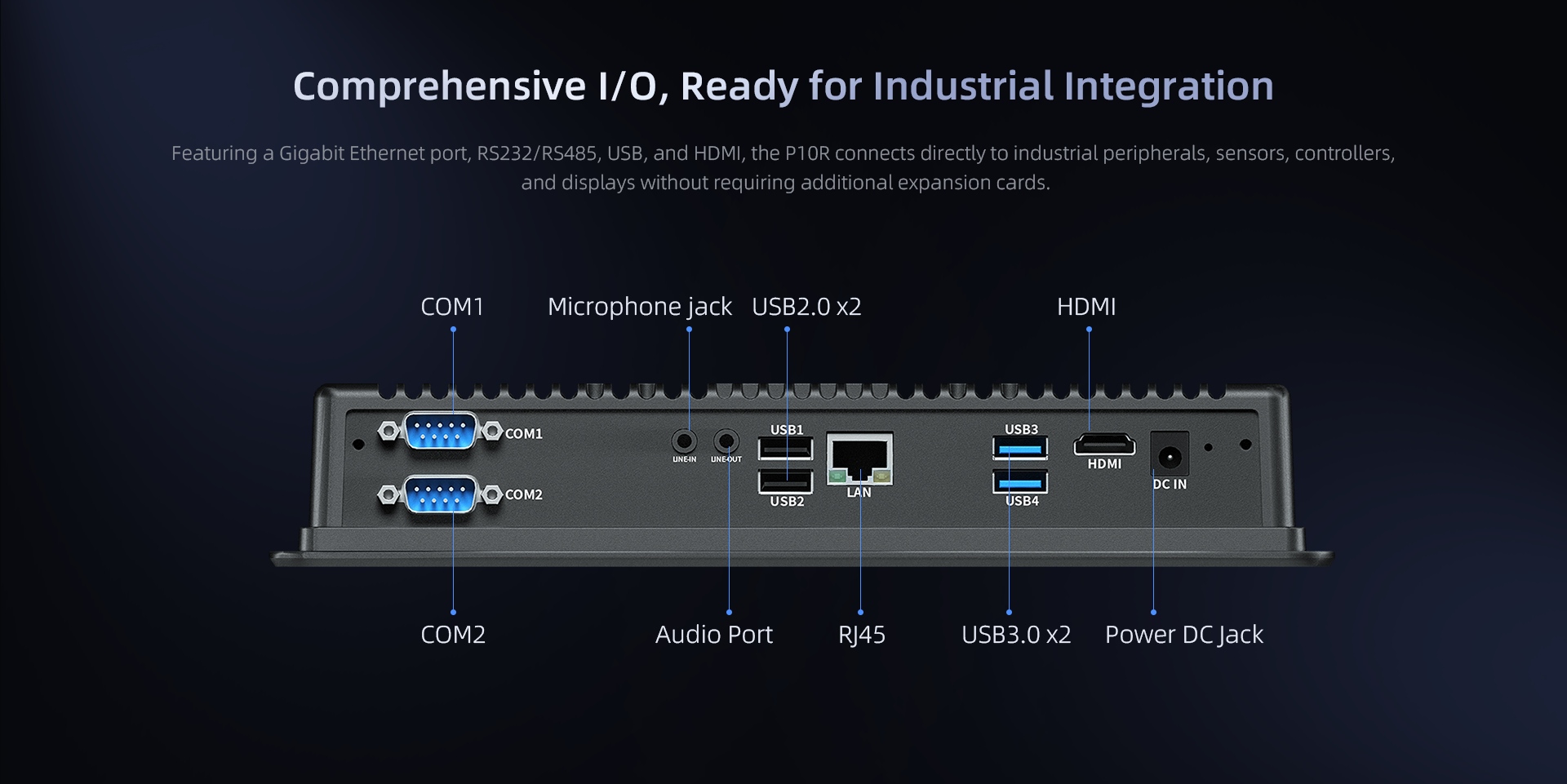

It features 1 × USB 3.0, 1 × USB 3.0 OTG, 2 × USB 2.0, 1 × Gigabit Ethernet, 2 × RS232, HDMI 2.0 and 2 × 3.5mm audio jacks. An optional serial configuration supports 1 × RS232 + 1 × RS485, while the 12–24V DC input supports flexible integration with industrial equipment and control systems.

Fast and Reliable
Wireless Connectivity

The P10R Android industrial panel PC supports Wi-Fi 5 (802.11ac) and Bluetooth 5.0, providing reliable wireless connectivity for industrial HMI terminals, equipment monitoring, edge computing and smart commercial applications.

Optional 4G LTE connectivity enables remote data communication where wired networks are unavailable. The P10R provides SMA ×2, with optional SMA ×3, supporting flexible antenna configurations for different industrial deployment requirements.

Built for Reliable
Industrial Operation

The P10R Android industrial panel PC supports reliable operation across a wide -20°C to 60°C (-4°F to 140°F) temperature range, helping it adapt to industrial HMI, equipment terminals, edge computing and fixed automation environments.

A 12–24V DC input supports flexible integration with industrial power systems, while ±8kV contact discharge and ±15kV air discharge protection help improve resistance to electrostatic discharge in demanding industrial environments.

Compact Design for
Flexible Installation

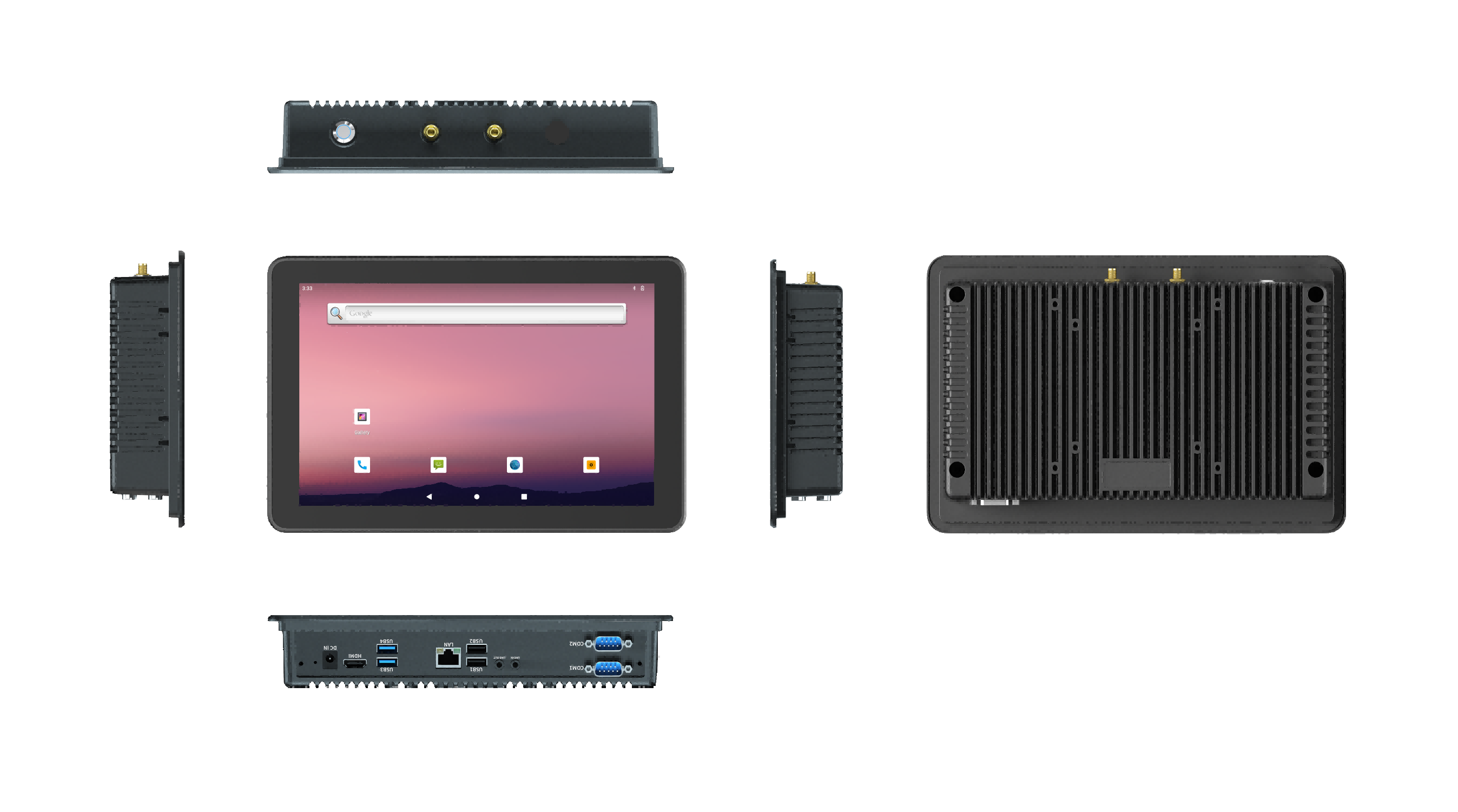

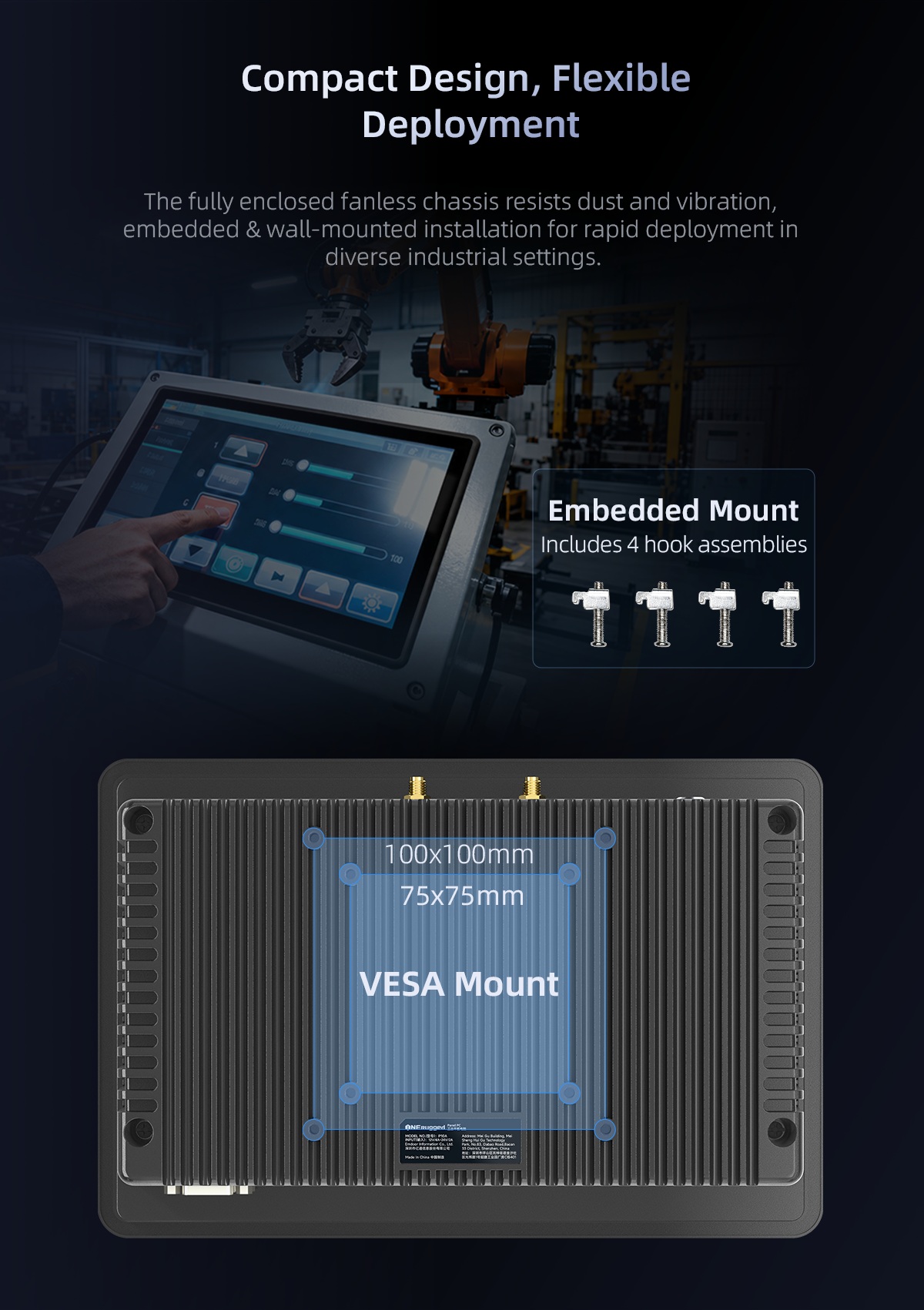

The P10R Android industrial panel PC features a compact fanless structure designed for integration into industrial equipment, HMI terminals, control systems and fixed edge computing applications.

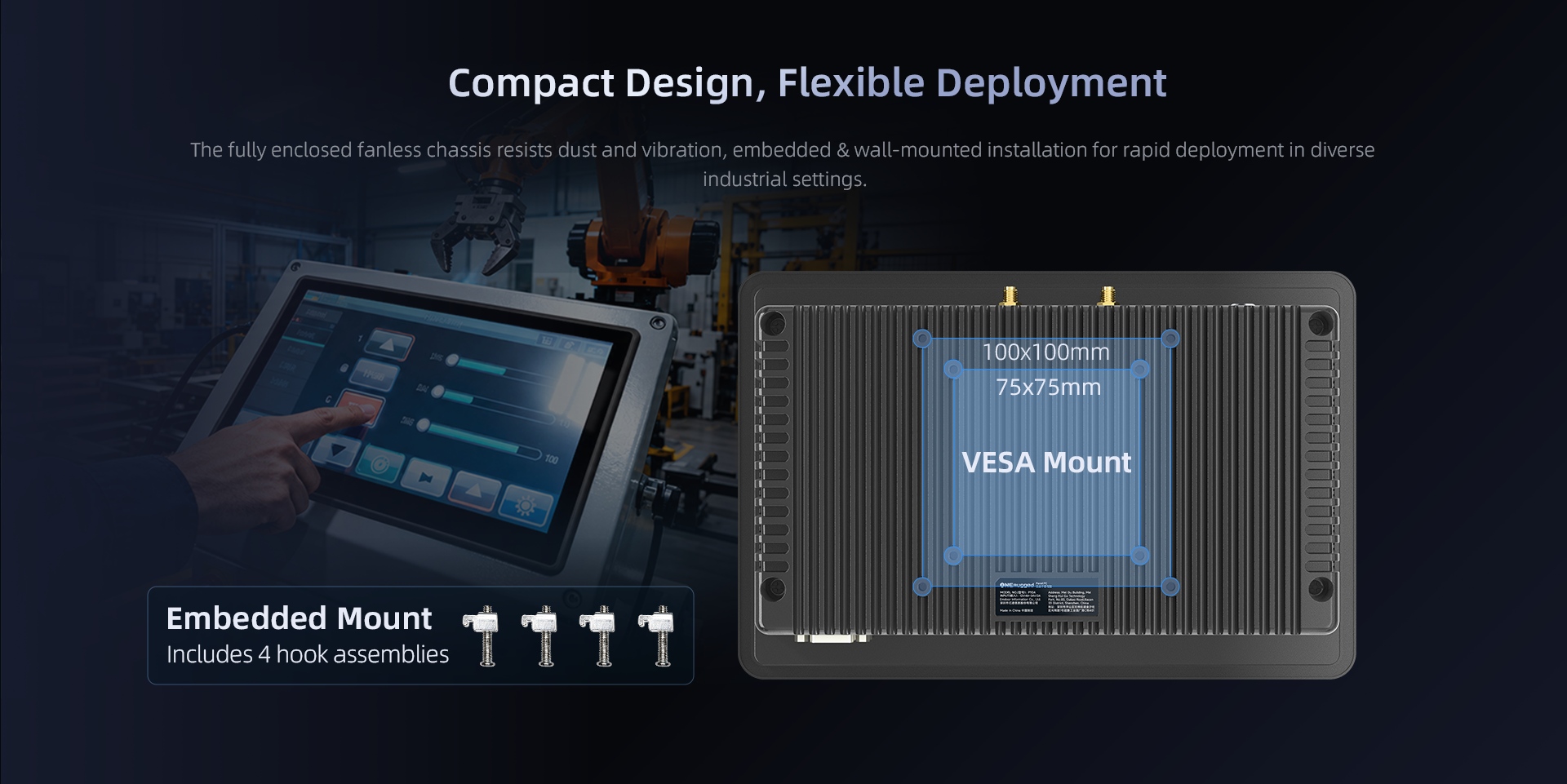

It supports embedded installation and wall-mounted deployment, while the standard hook assembly provides a practical solution for panel integration. Rear mounting patterns of 75 × 75 mm and 100 × 100 mm further support flexible installation requirements.
